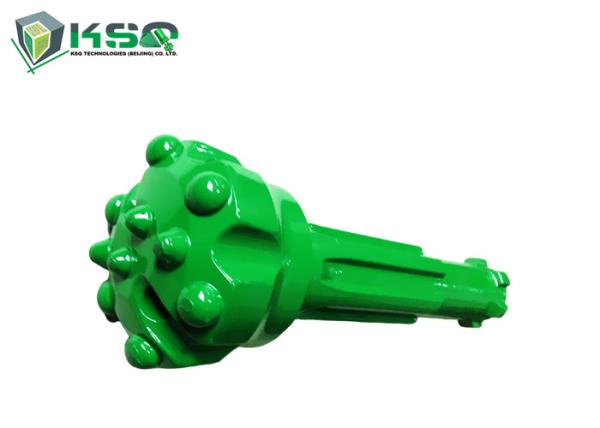

SD4 Shank DTH Drill Bits with Spherical Flat Face and Ballistic Convex Face
In DTH drilling, the rock drilling bit is a continuation of the shank, which the rock drill piston strikes directly. Since the piston is in direct contact with the drill bit, little energy is lost. This gives DTH drilling a nearly constant penetration rate regardless of hole length.
Basic Information
| Product | DTH Button Bits |
| Low Air Prussure | CIR80, CIR90 |
| 3'' High Air Prussure | DHD3.5, M30, |
| 4'' High Air Prussure | DHD340, SD4,QL40, M40 |
| 5'' High Air Prussure | DHD350, SD5,QL50, M50 |
| 6'' High Air Prussure | DHD360, SD6,QL60, M60 |
| 8'' High Air Prussure | DHD380, SD8,QL80, M80 |
| Color | Green, Gold, Black or based on customer requirements. |
| MOQ: | No MOQ required for testing and trial order |
Applications
• Underground mining
• Down the hole rock drilling
Competitive Advantage
• High grade tungsten carbide inserts
• Bit bodies manufactured from high grade steel and processed using state-of-the-art CNC machinery and heat treatment
SD4 High Air Pressure DTH Bit Specification:
| Diameter | Buttons and Size (mm) | Flushing hole | Weight | Part Number |
| mm | inch | Front | Gauge | kg |
| SD4 Spherical button/Concave face |
| 115 | 4 1/2 | 4×14,2×14 | 8×14 | 2 | 9.8 | 4148301256 |
| 121 | 4 3/4 | 4×14,2×14 | 8×14 | 2 | 11.5 | 4148301257 |
| 127 | 5 | 4×14,3×14 | 8×14 | 2 | 12.3 | 4148301258 |
| 130 | 5 1/8 | 4×14,3×14 | 8×16 | 2 | 14.3 | 4148301259 |
| SD4 Ballistic button/Convex face |
| 110 | 4 3/8 | 4×14,2×14 | 8×14 | 2 | 9.5 | 4148301260 |
| 115 | 4 1/2 | 4×14,2×14 | 8×14 | 2 | 9.8 | 4148301261 |
| 121 | 4 3/4 | 4×14,2×14 | 8×14 | 2 | 11.5 | 4148301262 |
| 127 | 5 | 4×14,3×14 | 8×14 | 2 | 12.3 | 4148301263 |
| 130 | 5 1/8 | 4×14,3×14 | 8×16 | 2 | 14.3 | 4148301264 |
| 133 | 5 1/4 | 4×14,3×14 | 8×16 | 2 | 15.3 | 4148301265 |
| SD4 Spherical button/Flat face |
| 110 | 4 3/8 | 6×14 | 8×14 | 2 | 9.5 | 4148301266 |
| 115 | 4 1/2 | 6×14 | 8×14 | 2 | 9.8 | 4148301267 |
| 121 | 4 3/4 | 6×14 | 8×14 | 2 | 11.5 | 4148301268 |
| 127 | 5 | 7×14 | 8×14 | 2 | 12.3 | 4148301269 |
| 130 | 5 1/8 | 7×14 | 8×16 | 2 | 14.3 | 4148301270 |
| 133 | 5 1/4 | 7×14 | 8×16 | 2 | 15.3 | 4148301271 |
We can design and manufacture the personalized products to meet your specical apllication, such as changing the tungsten carbide insert profile (spherical, ballistic, etc.), face profile (flat face, concave, convex, etc.), and flushing holes.
